Picture of the day. The new iPad III pictures

For Christmas 2011 My dear wife got me an iPad that I have been enjoying  a lot. Now that her birthday it’s coming, it is time to get even and I got the new iPad for her.

The  original lighting setting for this pictures was done with one Travelite 750 set to 1 o clock with a 11″ reflector and a 30Deg grid. I used a flag beneath the reflector to block the light a bit on the white background behind the box. At 7  o clock I position a white bounce card to open up the shadow on the front left side of the box. After a few shots I decided to add a second light to color the background and that was done with a Canon 580 EXII with two cuts of blue gel. All the lights were triggered with a Pocket Wizard Mini TT1 and Flex TT5.

The Camera I used is a Canon 5D Mark III with a Canon EF 24-70 f2.8 L. White balance I think it was set at 6000K,  iso 100  F14  speed 200th.

Here is the original shot I took

Click on it to enlarge.

I kind of like the first picture but I wanted to incorporate the actual iPad to the image.

 Click on it to enlarge.

Then I decided to be creative and start playing with colors and that is when the Canon 580EXII came in. Also I turned on the iPad so it would look cool with a picture on the screen.

Click on it to enlarge

When saw that third image I did not care for it.  The exposure was not nearly enough to record the screen (IT WAS ON FOR THIS PICTURE)  and I think the crop did not look right at all, it was like a black square in front of the box. Then I recomposed the image and started trying to light the display with a third light in such way that it would show the image. Needless to say it did not matter what I did or where I positioned the light, the darn display was too dark or I ended up reflecting light into it or got a bunch of glare on a black screen. That is when I did something I don’t do often… Think. The answer pop right into my head.

The exposure for everything but the screen was already done with the flash, the camera was steady on a tripod. The flash duration is quite fast, therefore it did not mater the shutter speed being at 200 when nothing is moving. Now are you thinking what I’m thinking? You’re right. Turn of the ambient light and work on total darkness, take a picture for 30″ and see what happens. Bingo, the box and background are exposed by the flash and the screen it exposed using it’s own light. (I had to play with the exposure time to get it right, it ended up being 5″or 10″) and that is it.

Click on it to enlarge.

By the way, the picture on the display is my wife reading my iPad. I took that picture a few months ago and I thought it was going to be cool to use that image for this one.

If you have any comments or thoughts I would certainly appreciate if you leave some feed back.

Regards to all.

PS: If you made it all the way to the end here is a bonus picture of the settings.

Click on it to enlarge.

iPad setting

Advertisements

Picture of the day. Painting with light II

Here are a few more images done with an LED flashlight. The basic idea an camera settings are the same as in my previous post https://alexephotos.com/2011/11/08/photo-of-the-day-painting-with-light/

Again thanks for looking and following the blog.

Make sure to ask any questions you might have, or if you have any comments or ideas feel free to post them.

Regards,

Alex Elias

Click on  image to enlarge.

Photo of the day. Painting with light.

Today I wanted to light a simple set up with a very simple light source… an LED flash light. The basic idea is that the LED will be the only source of light, therefore a tripod is a must (unless you can hold the camera for 30″ with one hand and use the flash light with the other)

One of the many benefits of lighting something in this manner is that the light can be place exactly where you want it, allowing for great freedom and creativity, also there is no expenses to do this kind of photography aside from the tripod and LED flashlight. The one drawback and quite frankly not a big deal, is that each picture is unique and there is no way to recreate it.

The camera was a Canon 7D and the lens a Canon EF 27-70 f2.8L. I set the camera to manual everything (including focus) ISO 100, F10, 30″ exposure manual,  color temp to 10000K . Focus on your subject while you have light and then turn off the autofocus, that way the camera will not go crazy trying to focus in the dark. Make sure that whatever available light you might have on the room does not record on the sensor (do a test shot and make sure the image must be black) after that, get ready to shoot a lot of frames and make the necessary changes as you go.

Here is one picture I just did. If you like to know more details about the LED and how to use it so it does not appear in the frame while lighting, let me know and I’ll make another post with different images and a few more details on how to light the scene.

Thanks for looking.

Comments and suggestions are welcome.

Alex Elias

Click on image to see full size.

Photo of the day. Carved pumpkin picture.

Tonight when I walked into the house I noticed the carved pumpkin glowing on the table. I like the low light mood and decided to grave the camera and try to capture the scene the way I was looking at it. After trying a few different approaches, this is how I ended up doing it.

Canon 7D and Canon Ef 24-70 F2.8L on tripod. ISO 100 F5.6 and 1 second of exposure, and the color balance was set to tungsten.  To camera left I used a Canon 580EX with a full cut of CTO with a Pocket Wizard Flex TT5 on a 2’x2′ Lastolite Ezy box, that was triggered with a Pocket Wizard Mini TT1 and a an AC3 Pocket wizard module in manual mode dialed down to minus 3. The idea was to capture the overall scene with the ambient light and use the flash to show a bit around it.

Thanks for stopping by.

Alex Elias.

Picture of the day. Close up and still Photography.

My dear friend Jeff got my this fabulous flower arrangement. When I first saw it I got amazed by the looks and attention to details not to mention the fragrance was just incredible as well. Since flower look great for so long I decided I wanted to make them the subject of a photo shoot. My first thought was to take a few pictures of it but the few pictures turn out to be over 100 pictures and a bit over 3 hours. I started shooting the base only and then I got inspired and started to shoot individual flowers, different lenses angles and lighting scenarios.

Equipment used

The pictures were taken with a Canon 7D set at ISO  160 speed at 250 F8 and white balance fixed at 5800K for most images. Later during the shot I started using F16 for the close ups so I switched to ISO 200 and 250. I mostly used a Canon EF 24-70 2.8L and Canon EF 100Macro 2.8 also some pictures were done using a Canon EF-S 10-22 to get some different perspectives. As far as lighting this time I did not use strobes. I took all the pictures with a Canon 580EXII and a Lastolite easy box 2×2 and a white reflector to bounce some fill light on the opposite side. Later during the shoot I added a Canon 430EXII with an umbrella. I controlled the lights with a Pocket wizard mini TT1 and the AC3 controller (both lights were in manual mode on independent groups)

Thanks for looking and don’t hesitate to ask should you have any questions.

Regards,

Alex Elias

Still photography and feathering the light

My 3 Yr old son decided to yank this flower from the plant ( along with 12 other of it’s kind ) Since he go every flower with had there I wanted to at least have a picture of one before it die.

The backdrop I used was a piece of burlap that I thought it was going to work well. After a few shots I realized I did not liked the backdrop at all and started to pull it back to make it darker due to light fall off. Next thing you know I run out of space and I was able to still see the burlap pretty clearly.   After a few tries I figured that pulling the light farther away did help the background but the flower went darker in the same relation, so I went back to the original light position, added a black back drop and changed the angle of the light and that did the trick. Basically the light was not aiming directly at the flower, it was position in a way were the light traveled in front of the flower from right to left therefore feathering the light  it created a beautiful wrapping light that brought the flower back to life and added some depth and contrast.

Equipment Used.

Canon 7D with Canon Es 24-70 2.8L the camera was set at ISO 200 F5.6 I used one travelite 750 with a 36″x48″ Photoflex soft box (I did not need such a large box for this but it was up on the stand already) the light was triggered via Pocket wizard.

This is the end result

This picture was with the original set up.

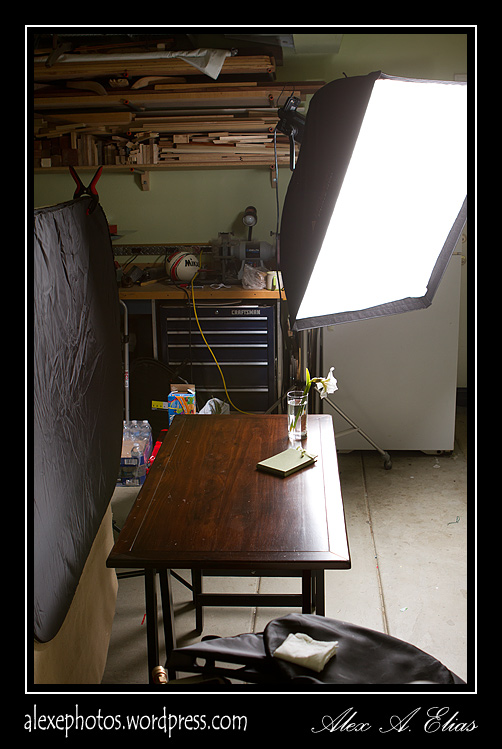

And this two images show the light in relation to the flower.

Photo of the day. Macro photography flowers part 2

I wrote something about macro and close up photography a while ago here https://alexephotos.wordpress.com/2009/10/25/macro-photo-of-the-day-feathers/  this talks about the set up I used to take pictures of feathers. The ABC’s are the same.

Tripod is almost a must first for the obvious reason of steadiness and second to find the composition that better suits your eye and third so every thing remains the same if you like to play with the lights to get different effects, so a tripod is paramount for this kind of images.

Use the mirror lock up function if your camera has one (it helps reduce or eliminate vibrations created by the mirror when it flips up)  If you don’t know if your camera has that feature or not this would be a good time to get something call owners manual, it’s a little book that came inside the box and most likely was tossed aside 🙂 if the camera does not have a mirror lock up feature use a self timer.

Cable release or wireless trigger also helpful to reduce vibrations.

I used a Macro lens Canon EF 100mm 2.8 but it is not a must if you don’t own one work as close as the lens will let you. There are some accessories one can use as well such as close up filters, or extension tubes to increase the magnification.  Now that we are mentioning the lens it is best to focus manually to get the best possible focus and use a small appeture with ironically is the larger number this images were taken at  f20 although this will add to the Depth of filed it might not be the best f stop due to something call diffraction, f11 to f16 depending on the camera and lens could be safe.

As far as lighting  I used mainly one Canon 580EXII on a stand with a 24″x24″ lastolite soft box. The flash was trigger via  Pocket Wizard Mini TT1 on the camera and a Pocket Wizard Flex TT5 on the flash. The flash was set to manual (find your own exposure and flash distance to subject) and shoot away.

On some of the pictures of the Poppies you’ll noticed I used 2 Flashes, the main one and on the center post of the tripod I attached at second unit (Canon 430EXII) also in manual mode connected with a Pocket Wizard FlexTT5. Since the poppies are rather thin I wanted to see how it would look like with some light coming from behind the petals.

Reflectors could be helpful to fill in shadow areas on the opposite side of the main light, depending on the look that you are after and the lights available to you, a reflector allows you to shoot with only one light. Even if you don’t have any lights available, place your subject next to a window with diffused light coming through and use the reflector on the other side.

I shoot this pictures with a Canon 7D set to manual mode. the speed was set at 50th of a second (although I’d recommend 250th) I guess I was not paying enough attention when I did my set up shame on me 🙂  ISO for most pictures was set between 100 and 200 and for a few where I needed more light instead of cranking up the flash too much I gave the camera a way to go with a 400 ISO (that is one way to conserve a bit of batteries and get faster recycle times) not that is so important for still photography to have a fast recycle time anyway.

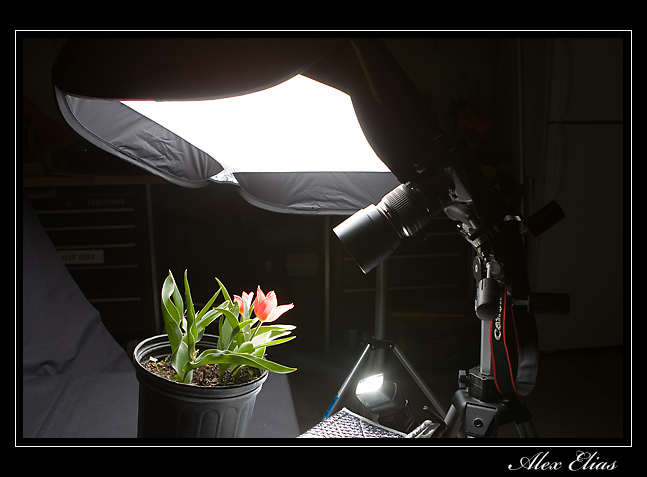

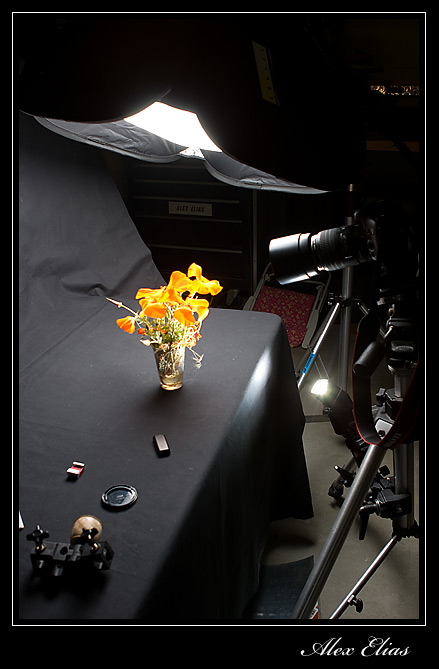

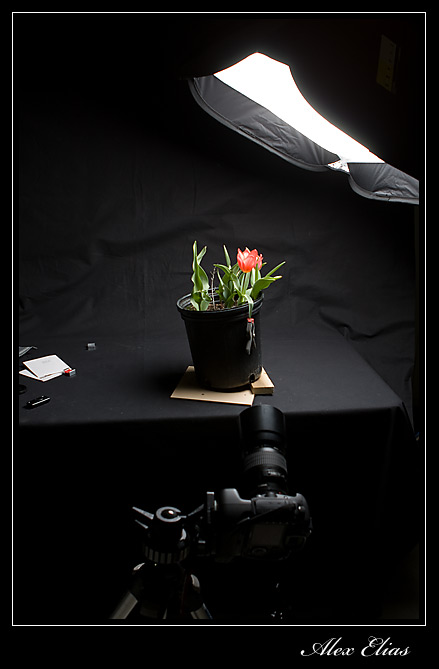

Here it are some of the pictures along with pictures of the set up.

Thanks for reading this and don’t hesitate to comment, ask questions of post your own experiences.

Regards,

Alex ELias
